More than 6000 times charge / discharge cycles life.
Intelligent BMS to maintain the battery always work at best condition.

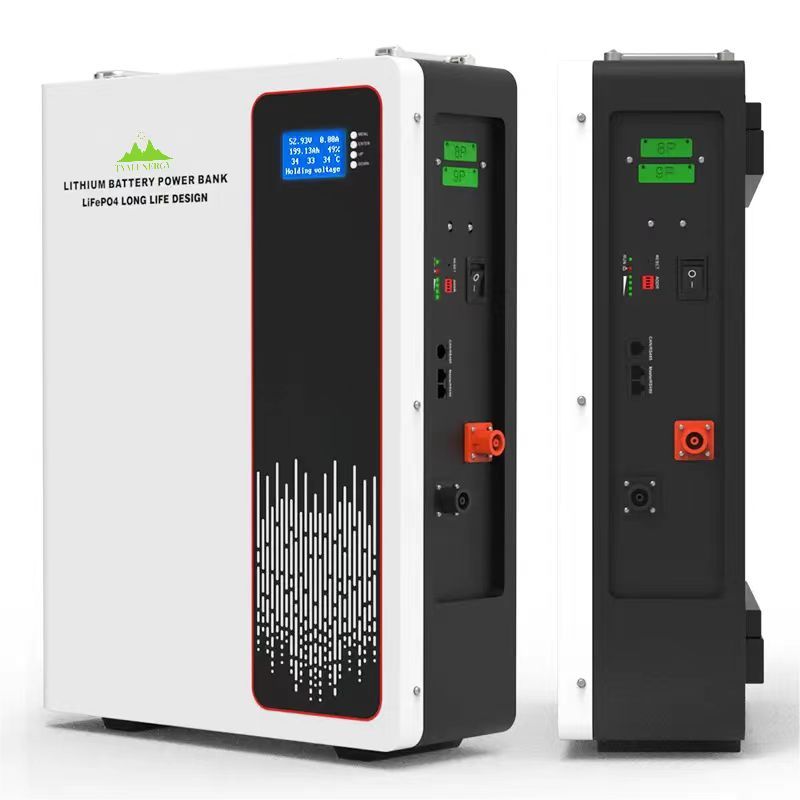

Horizontal and wall hanging case. Output shutdown after 30 days of no charge / discharge. Excellent standby self-consumption as low as 4mA.| TYM-5120LVWA | TYM-10240LVWA | |
| Parameters | ||
| Capacity (Wh) |
5120Wh | 10240Wh |
| Capacity (Ah) | 100Ah | 200Ah |
| Max Continuous Discharge(A) |
100A |
100A |
| Max Continuous Charge(A) | 50A |
100A |
| Max Pulse Discharge(A) | 150A 1 Sec. |
|
| Rated voltage (V) | 51.2V | |
| Voltage range (V) | 44.8 ~ 58.4 |
|
| Folat Charge Voltage(V) | 56V |
|
| Case design |
Wall mounted | |
| Battery type |
LiFePO4 | |
| Cells brand |
CATL | |
| Cell Equalizer Current(A) |
1~5A Max. | |
| Terminal |
M8 | |
| Storage duration |
6 months at 25℃ | |
| Cycle times |
80% DOD，cycles>3000，residual capacity>70% | |
| Communication |
CAN 2.0/RS485 | |
| Protection |
Over charge/discharge; Over/low temperature; over/short circuit; Over/under voltage | |
| General | ||
| Products Dimension (L/W/H) | 786*455*181mm |
1021*605*190mm |
| Package Dimension (L/W/H) |
859*545*278mm | 1145*710*365mm |
| Products Weight | 45.7 kg | 83.9 kg |
| Package Weight | 52.0 kg | 107.5 kg |
| 20FT Container | 234 PCS | 96 PCS |
| Temperature | Operating: -10°C...+50℃; Storage: -20°C...+60℃; | |
| Degree of protection | IP20 | |
| Humidity | 0-95%,no condensation | |
| Altitude (m) | <2000 | |
| Certificates | ||
| UN38.3, MSDS, CE | ||
